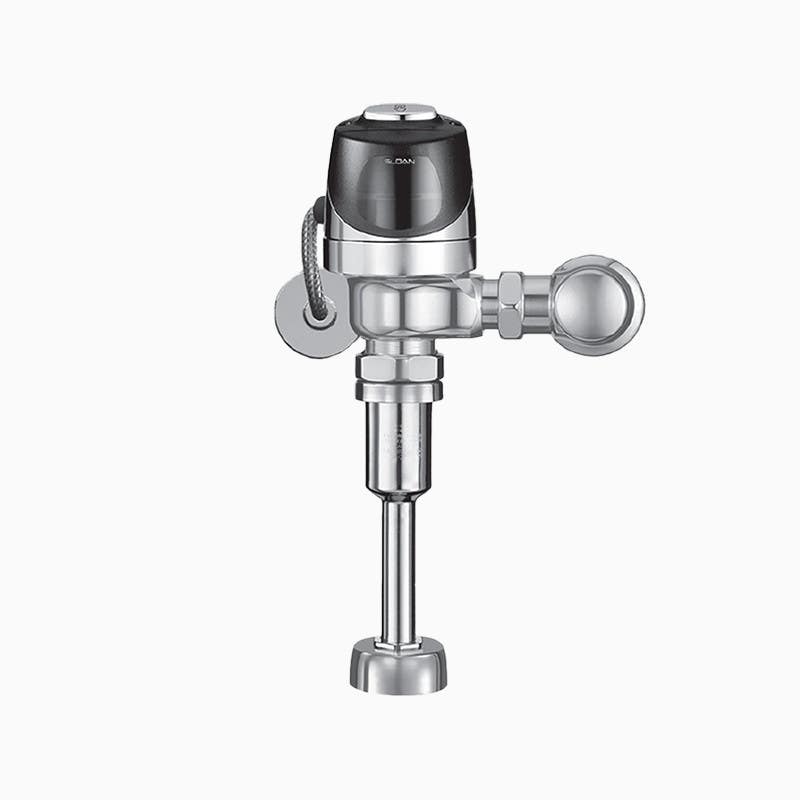

Sloan ECOS 186 HW ECOS Hardwire Sensor-Activated Urinal Flushometer,Polished Chrome
$780.46
$1,200.72
35% Off
- Model:
-
ECOS 186 HW
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Sloan ECOS 186 HW ECOS Hardwire Sensor-Activated Urinal Flushometer,Polished Chrome
Features
- Includes 9" electrical cable, right hand electrical rough-in may require 18" cable — consult factory
- Flex Tube Diaphragm designed for improved life and reduced maintenance
- Courtesy Flush® Override Button
- PERMEX® Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex cleansing action
- Employs an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Latching Solenoid Operator
- High copper, low zinc brass castings for dezincification resistance
- Engineered Metal Cover with replaceable Lens Window
- High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
- ADA Compliant Sloan® ECOS® Electronic Infrared Sensor for automatic "No Hands" operation
- Adjustable Tailpiece
- Line Powered with 6 VAC Step Down Transformer
- 3/4" I.P.S. Screwdriver Bak-Chek® Angle Stop
- Initial Set-up Range Indicator Light (first 10 minutes)
- Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- High Copper, Low Zinc Brass Castings for Dezincification Resistance
- Spud Coupling and Flange for 3/4" Top Spud
- Free Spinning, Vandal Resistant Stop Cap
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
- Spec Sheet ECOS 186-1.0 HW
- Spec Sheet ECOS 186-0.5 HW
- Spec Sheet ECOS 186-0.25 HW
- Spec Sheet ECOS 186-0.125 HW
- Flushometers Brochure
- ECOS Single Flush HW Flushometer and Retrofit
- ECOS HW Repair and Maintenance Guide
- Control Stop Repair and Maintenance Guide
- Flush Connections Flanges Repair and Maintenance Guide
- Tail Piece Repair and Maintenance Guide
