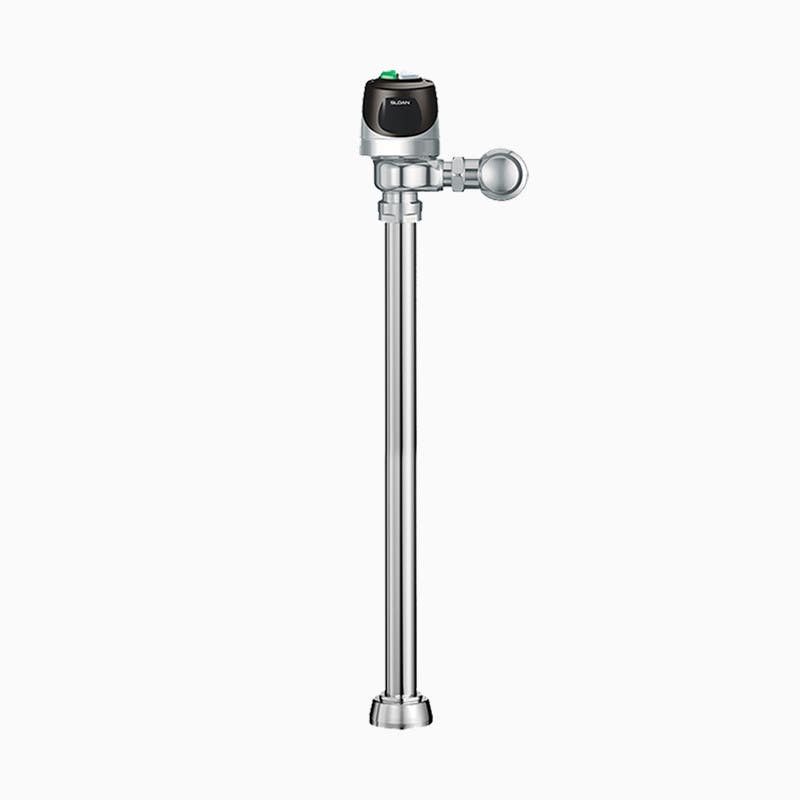

Sloan ECOS 8116-1.6/1.1 ECOS Battery-Powered Water Closet Flushometer,Flush Volume-1.6/1.1 gpf,Polished Chrome

Sloan Valve Co.
Product Tags (editing)
No tags yet.

Product Categories (editing)
Not in any category yet.

Product Price (editing)
Clear Sale to remove the discount. Reload the listing to update PLPs.

Option Prices (editing)

Add-on prices are global. Reload the listing to update the on-page configurator and PLPs.

$772.40
$1,188.30
35% Off
Model:
ECOS 8116-1.6/1.1
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
printer Print
Email to a Friend
Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Details: Sloan ECOS 8116-1.6/1.1 ECOS Battery-Powered Water Closet Flushometer,Flush Volume-1.6/1.1 gpf,Polished Chrome

Features

  • Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
  • User friendly three (3) second Flush Delay
  • "Low Battery" Flashing LED
  • Sweat solder adapter with cover tube and cast wall flange with set screw
  • Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
  • If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full fl ush initiates (1.6 gpf/ 6.0 Lpf) eliminating solid waste and paper
  • Engineered Metal Cover with replaceable Lens Window
  • PERMEX® Synthetic Rubber Flex Tube Diaphragm with Dual filtered bypass designed for improved life and reduced maintenance
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection with range adjustment screw
  • Four (4) Size AA batteries included
  • Courtesy Flush® Override Button
  • 1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap

Specifications

Power Type
Battery ()
Battery Life
6 years
Valve
Diaphragm
Valve Body Material
Semi-red Brass
Fixture Type
Water Closet
Fixture Connection
Top Spud
Rough-In Dimension
27" (686mm)
Spud Coupling
1 ½" (38mm)
Supply Pipe
1" (25mm)
Compliances & Certifications
ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC Certified, cUPC Green Certified, Green Globes Water Credit

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Flushometer Tailpiece Removal Instruction

Ground Joint Control Stops and Adjustable Control Stops Explained
