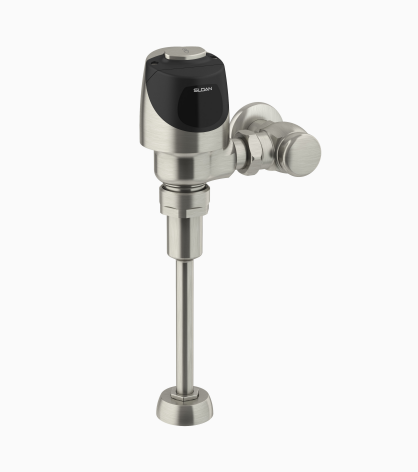

Sloan G2 8186 G2 Optima Plus Battery-Powered Sensor-Activated Urinal Flushometer
$711.02
$1,093.88
35% Off
As low as:
- Model:
-
G2 8186-42477124
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Sloan G2 8186 G2 Optima Plus Battery-Powered Sensor-Activated Urinal Flushometer
Features
- ADA-compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Adjustable tailpiece to accommodate different height requirements
- High copper, low zinc brass castings for dezincification resistance
- Available in 0.5 gpf/1.9 Lpf, low consumption (1.0 gpf/3.8 Lpf), water saver (1.5 gpf/5.7 Lpf), and conventional (3.5 gpf/13.2 Lpf) models
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037.
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
- Spec Sheet G2 8186
- Spec Sheet G2 8186-1
- Spec Sheet G2 8186-0.5
- Spec Sheet G2 8186 1.0 gpf PVDSF
- Spec Sheet G2 8186 0.5 gpf PVDSF
- Spec Sheet G2 8186 1.0 gpf PVDBN
- Spec Sheet G2 8186 0.5 gpf PVDBN
- Spec Sheet G2 8186 1.0 gpf PVDPB
- Spec Sheet G2 8186 0.5 gpf PVDPB
- Spec Sheet G2 8186 1.0 gpf PVDGR
- Spec Sheet G2 8186 0.5 gpf PVDGR
- Special Finishes Brochure
- G2 and ECOS Single Flush Optima Plus Valve Installation Instructions
- G2 Repair and Maintenance Guide
- Control Stop Repair and Maintenance Guide
- Flush Connections Flanges Repair and Maintenance Guide
- Tail Piece Repair and Maintenance Guide
- Sloan Optima Plus Flushometers Repair and Maintenance Guide
