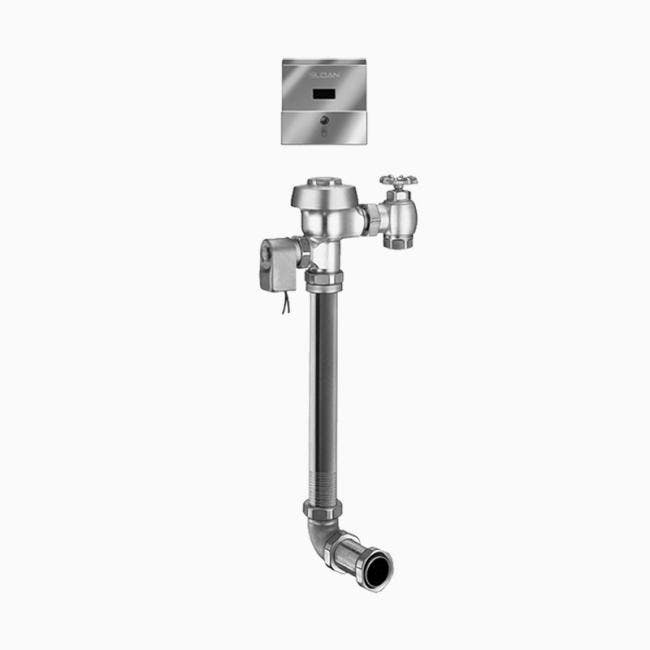

Sloan ROYAL 152 ES-SM Sensor-Activated Royal Water Closet Flushometer w/ Surface Mount Sensor,L Dimension 2-3/4"-10-3/4" LDIM

Sloan Valve Co.
Product Tags (editing)
No tags yet.

Product Categories (editing)
Not in any category yet.

Product Price (editing)
Clear Sale to remove the discount. Reload the listing to update PLPs.

Option Prices (editing)

Add-on prices are global. Reload the listing to update the on-page configurator and PLPs.

$1,198.62
$1,844.04
35% Off
Model:
ROYAL 152 ES-SM
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
printer Print
Email to a Friend
Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Details: Sloan ROYAL 152 ES-SM Sensor-Activated Royal Water Closet Flushometer w/ Surface Mount Sensor,L Dimension 2-3/4"-10-3/4" LDIM

Features of 3.5 gpf

  • PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Stop Seat and Vacuum Breaker molded from PERMEX® Rubber Compound for Chloramine Resistance
  • High Back Pressure Vacuum Breaker Flush Connection and Spud Coupling for 1 1/2" Concealed Back Spud
  • OPTIMA® EL-461 Water Resistant (NEMA 4) Infrared Sensor with Indicator Light and 36-Inch Cord with Modular Plug
  • User friendly adjustable 2 to 6 second Flush Delay
  • Water-Resistant (NEMA 4) Courtesy Flush® Override Button
  • Non-Hold-Open Integral Solenoid Operator with 15-Foot Cord and Modular Plug
  • Chrome Plated, Surface Mount Sensor Enclosure with Wall Gasket
  • 1" I.P.S. Wheel Handle Bak-Chek® Angle Stop

Features of ROYAL 1.28 gpf

  • PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Quiet, Concealed, Rough Brass Closet Flushometer for either left or right hand supply with the following features:
  • Chrome Plated Exposed Flushometer Parts
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Stop Seat and Vacuum Breaker molded from PERMEX® Rubber Compound for Chloramine Resistance
  • High Back Pressure Vacuum Breaker Flush Connection and Spud Coupling for 1 1/2" Concealed Back Spud
  • OPTIMA® EL-461 Water Resistant (NEMA 4) Infrared Sensor with Indicator Light and 36-Inch Cord with Modular Plug
  • User friendly adjustable 2 to 6 second Flush Delay
  • Water-Resistant (NEMA 4) Courtesy Flush® Override Button
  • Non-Hold-Open Integral Solenoid Operator with 15-Foot Cord and Modular Plug
  • Chrome Plated, Surface Mount Sensor Enclosure with Wall Gasket
  • 1" I.P.S. Wheel Handle Bak-Chek® Angle Stop
  • Flush accuracy controlled by CID® technology

Features of 1.6 gpf

  • PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Stop Seat and Vacuum Breaker molded from PERMEX® Rubber Compound for Chloramine Resistance
  • High Back Pressure Vacuum Breaker Flush Connection and Spud Coupling for 1 1/2" Concealed Back Spud
  • OPTIMA® EL-461 Water Resistant (NEMA 4) Infrared Sensor with Indicator Light and 36-Inch Cord with Modular Plug
  • User friendly adjustable 2 to 6 second Flush Delay
  • Water-Resistant (NEMA 4) Courtesy Flush® Override Button
  • Non-Hold-Open Integral Solenoid Operator with 15-Foot Cord and Modular Plug
  • Chrome Plated, Surface Mount Sensor Enclosure with Wall Gasket
  • 1" I.P.S. Wheel Handle Bak-Chek® Angle Stop

Specifications

Finish
Rough Brass (RB)
Valve
Diaphragm
Valve Body Material
Semi-red Brass
Fixture Type
Water Closet
Fixture Connection
Rear Spud
Rough-In Dimension
24" (610mm)
Spud Coupling
1 ½" (38mm)
Supply Pipe
1" (25mm)
L Dimension
2" — 10 ¾" (51 — 273mm) (2-10-3/4-LDIM)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

ESS Flushometer

Flushometer Tailpiece Removal Instruction

Ground Joint Control Stops and Adjustable Control Stops Explained
