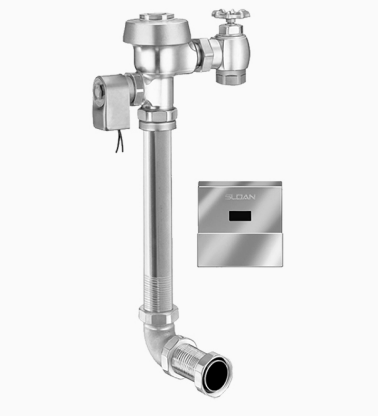

Sloan ROYAL 190 ES-SM Sensor-Activated Royal Urinal Flushometer w/ Surface Mount Sensor, L Dimension 2-3/4"-10-3/4" LDIM,Rough Brass
$1,154.40
$1,776.00
35% Off
- Model:
-
ROYAL 190 ES-SMItem is normally in stock and ships out within 2-3 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Sloan ROYAL 190 ES-SM Sensor-Activated Royal Urinal Flushometer w/ Surface Mount Sensor, L Dimension 2-3/4"-10-3/4" LDIM,Rough Brass
Features
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Quiet, Concealed, Diaphragm Type, Rough Brass Urinal
- Stop Seat and Vacuum Breaker molded from PERMEX® Rubber Compound for Chloramine Resistance
- OPTIMA® EL-461 Water Resistant (NEMA 4) Infrared Sensor with Indicator Light and 36-Inch Cord with Modular Plug
- Chrome Plated, Surface Mount Sensor Enclosure with Wall Gasket
- High Back Pressure Vacuum Breaker Flush Connection and Spud Coupling for 11⁄4" Concealed Back Spud
- Non-Hold-Open Integral Solenoid Operator w/15-Foot Cord & Modular Plug
- 1" I.P.S. Wheel Handle Bak-Chek® Angle Stop
Specifications
- Flush Volume
- 3.5 gpf (13.2 Lpf)
- Finish
- Rough Brass (RB)
- Valve
- Diaphragm
- Valve Body Material
- Semi-red Brass
- Fixture Type
- Urinal
- Fixture Connection
- Rear Spud
- Rough-In Dimension
- 14 ½" (368mm)
- Spud Coupling
- 1 ¼" (32mm)
- Supply Pipe
- 1" (25mm)
- L Dimension
- 2" — 10 ¾" (51 — 273mm) (2-10-3/4-LDIM)
- Compliances & Certifications
- UL Certified, ADA Compliant, UPC Certified, BAA Compliant
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
- Spec Sheet
- Royal ESS Concealed with Wall Box Installation Instructions
- Royal ESS Concealed and Exposed Installation Instructions
- Control Stop Repair and Maintenance Guide
- Flush Connections Flanges Repair and Maintenance Guide
- Tail Piece Repair and Maintenance Guide
- Optima ESS Repair and Maintenance Guide
