Sloan ROYAL 195 ESS TMO SBX Royal Concealed Sensor Urinal Hydraulic Flushometer,Rough Brass

Name: Sloan ROYAL 195 ESS TMO SBX Royal Concealed Sensor Urinal Hydraulic Flushometer,Rough Brass
Brand: Sloan Valve Co.
SKU: ROYAL 195 ESS TMO SBX
Price: 857.16 USD
Availability: InStock

$857.16

$1,318.71

35% Off

Model:: ROYAL 195 ESS TMO SBX

Item is normally in stock and ships out within 2-3 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

SKU

Ask A Question

Details: Sloan ROYAL 195 ESS TMO SBX Royal Concealed Sensor Urinal Hydraulic Flushometer,Rough Brass

Features

PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
"Walk By" Delay of Eight (8) Seconds Prevents Unintentional Flushes

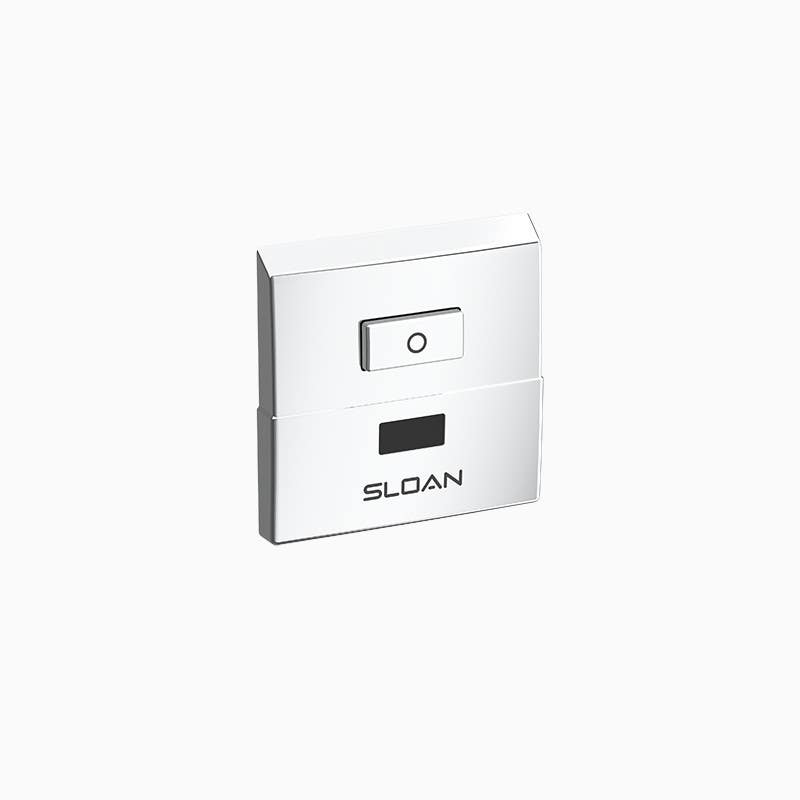

Die Cast Sensor Plate with no visible Fasteners (for 4" Square
Extension Electrical Box)
Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Hydraulic Metal Push Button Assembly for True Mechanical Override
High Back Pressure Vacuum Breaker Flush Connection with Hex Coupling Nut and Spud Coupling for 3/4" Rear Spud
IAPMO certified to meet or exceed ASME A112.19.2 standards
Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
WaterSense compliant when used with a 0.5, 0.25, 0.125 gpf WaterSense compliant fixture

Specifications

Finish: Rough Brass (RB)
Power Type: Hardwired (HW)
Valve: Diaphragm
Bypass: Dual-Filtered Bypass (DBP)
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
L Dimension: 2" — 10 ¾" (51 — 273mm) (2-10-3/4-LDIM)
Override: True Mechanical (TMO)
Control Stop: 3/4" ()
Inlet: 0.75" ()
Vacuum Breaker: 10.5" (10-1/2-VB)
Flush Connection: 0.75 ()
Voltage: 24V (24V)

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Sloan Valve Co. Warranty
