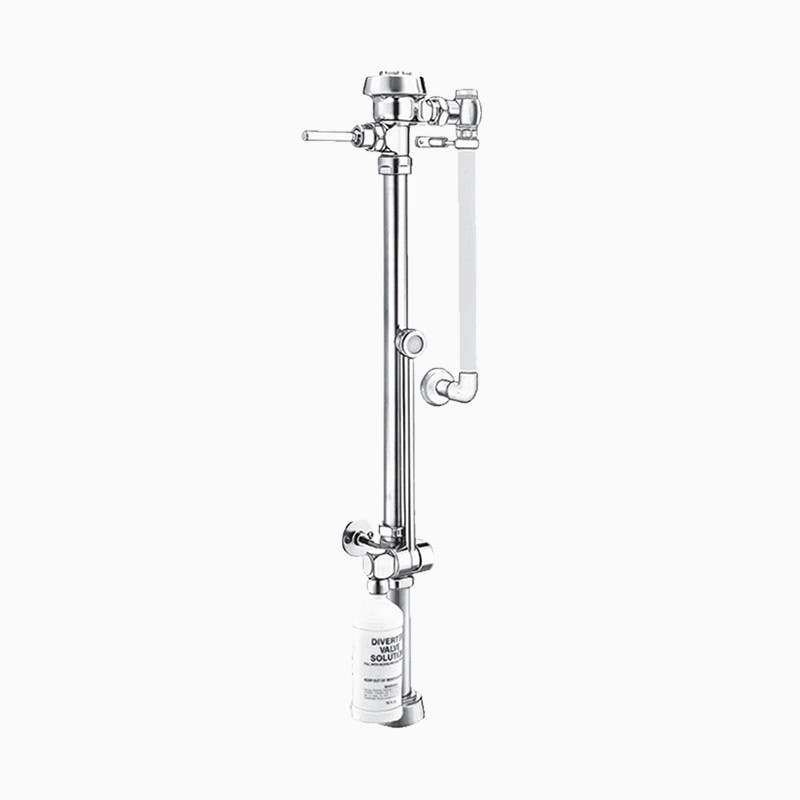

Sloan ROYAL BPW 1015 ROYAL Bedpan Washer Flushometer, Finish-Polished Chrome
$976.72
$1,502.65
35% Off
- Model:
-
ROYAL BPW 1015
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Sloan ROYAL BPW 1015 ROYAL Bedpan Washer Flushometer, Finish-Polished Chrome
Features
- Exposed water closet, diaphragm model Flushometer is intended for floor-mounted or wall-hung top spud bowls
- Operates by means of a metal oscillating, non-hold-open handle with a triple seal handle packing to ensure water conservation
- Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
- Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
- Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
- PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037.
Specifications
- Flush Volume
- 3.5 gpf (13.2 Lpf)
- Valve
- Diaphragm
- Valve Body Material
- Semi-red Brass
- Fixture Type
- Water Closet
- Fixture Connection
- Top Spud
- Rough-In Dimension
- 34 ⅜" (873mm)
- Spud Coupling
- 1 ½" (38mm)
- Supply Pipe
- 1" (25mm)
- Deoseptic Unit
- Yes
- Compliances & Certifications
- ADA Compliant, UPC Certified, BAA Compliant
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
- Spec Sheet
- Retrofits Brochure
- Slimline Royal/Regal XL Exposed Installation Instructions
- Control Stop Repair and Maintenance Guide
- Flush Connections Flanges Repair and Maintenance Guide
- Tail Piece Repair and Maintenance Guide
- Royal Manual Diaphragm Flushometer Repair and Maintenance Guide
- Slimline Bedpan Washer Repair and Maintenance Guide
- Diaphragm Kit Sell Sheet
- Manual Flushometer Maintenance Schedule Brochure
