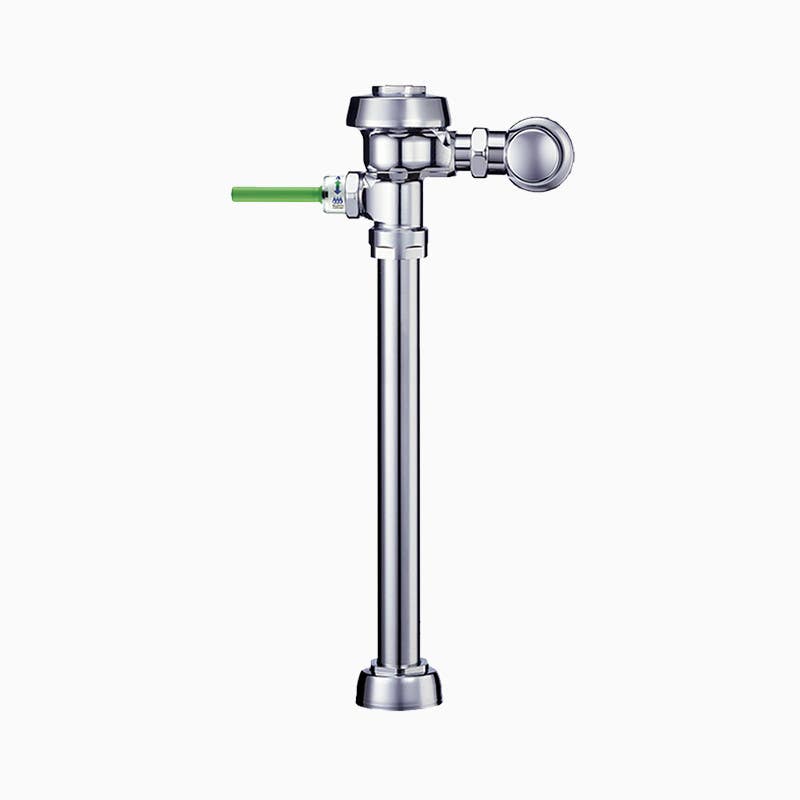

Sloan WES-116 UPPERCUT Exposed Dual-Flush Water Closet Flushometer, Rough In Dimension-27",Polished Chrome
$291.23
$448.04
35% Off
- Model:
-
WES-116
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Sloan WES-116 UPPERCUT Exposed Dual-Flush Water Closet Flushometer, Rough In Dimension-27",Polished Chrome
Features
- Lifting Handle UP initiates reduced flush (1.1 gpf/4.2 Lpf), eliminating liquid and paper waste, saving a 1⁄2-gallon of water
- Pushing Handle DOWN initiates full flush (1.6 gpf/6.0 Lpf), eliminating all waste
- Reduces water volume by up to 30% when activated UPWARDS
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Distinctive Green ADA Compliant Metal Non-Hold-Open Handle with Triple Seal Handle Packing signifies Water Conserving Device
- 1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
- Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
- Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
- Includes two (2) adhesive backed Metal Wall Plates etched with Instructions
- Adjustable Tailpiece
Specifications
- Flush Volume
- 1.6/1.1 gpf (6.0/4.2 Lpf)
- Finish
- Polished Chrome (CP)
- Valve
- Diaphragm
- Valve Body Material
- Semi-red Brass
- Fixture Type
- Water Closet
- Fixture Connection
- Top Spud
- Rough-In Dimension
- 27" (686mm)
- Spud Coupling
- 1 ½" (38mm)
- Supply Pipe
- 1" (25mm)
- Compliances & Certifications
- ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC Certified, cUPC Green Certified, Green Globes Water Credit
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
