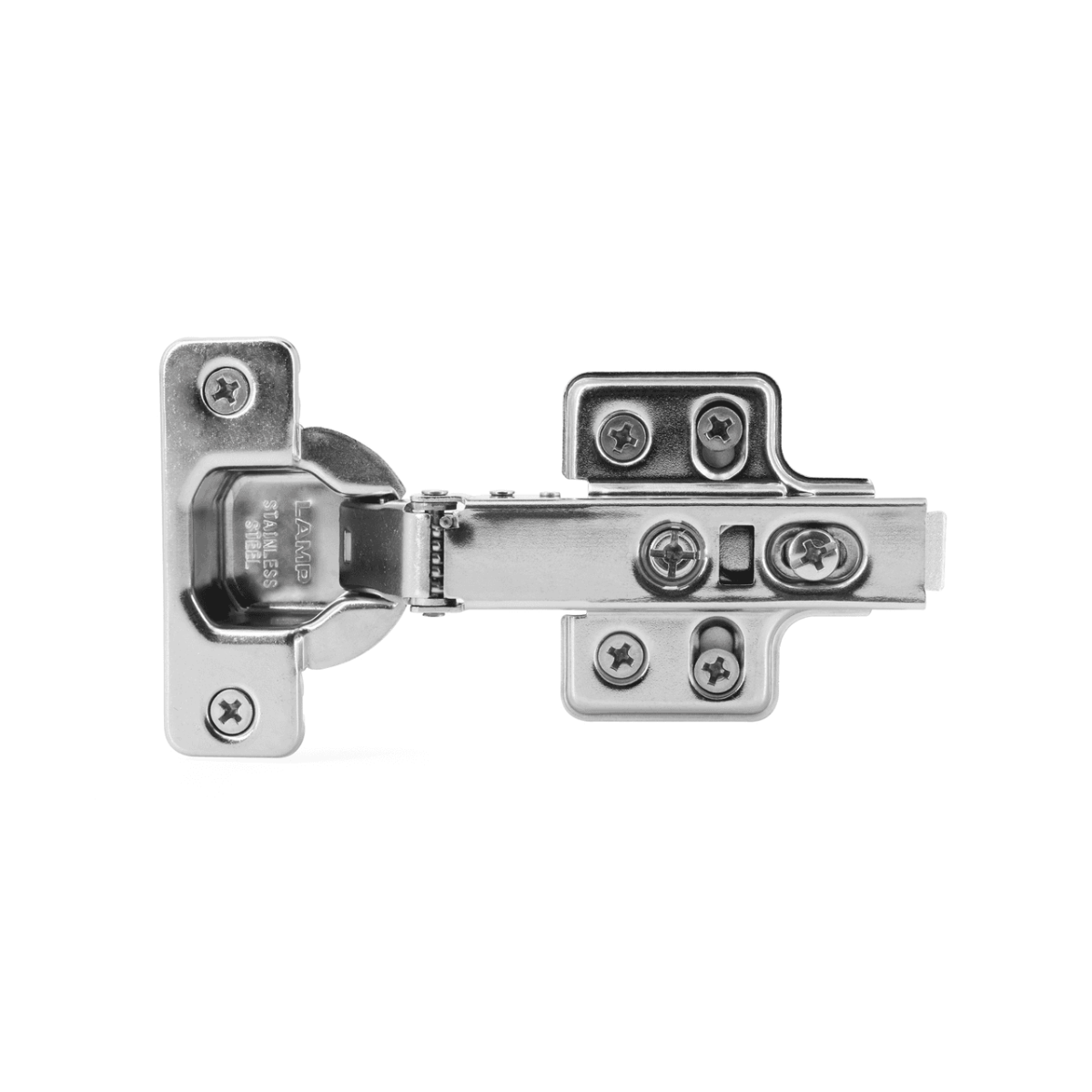

Sugatsune 180SUS Stainless Steel Concealed Hinge (Soft/Self Close)
$10.00
- Model:
-
180SUS
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Sugatsune 180SUS Stainless Steel Concealed Hinge (Soft/Self Close)
Features
- Stainless steel hinge body construction allows for usage in outdoor environments.
- Passed 480 hour salt spray test.
- Resin casing protects damper from corrosive elements.
- Convenient clip-on mounting system with easy release dismount lever. (180SUS-P6T mounting plate sold separately)
- Soft-close version prevents the door from slamming shut.
- Overlay: 9/16” ~ 3/4” (15 ~ 19mm)
- Door Thickness: 9/16” ~ 13/16” (15 ~ 20m)
- 3-Way Adjustable (Overlay, Depth, Vertical)
- Durable, successfully passed 30,000 cycle-test.
Specifications
| Material | - | Stainless steel, POM, SPCC |
| Finish | - | Polished |
| Weight of Item (g) | - | 58 |
| Length or Depth of Item when closed (in) | - | 3.323 |
| Height of Item (in) | - | 1.028 |
| Width of Item (in) | - | 2.461 |
| Load Capacity (lbs/pr) | - | 11 |
| Load Capacity (lbs/3 ea) | - | 17.6 |
| Load Capacity (lbs/4 ea) | - | 24.3 |
| Load Capacity (lbs/5 ea) | - | 28.6 |
| Cup Bore Diameter (in) | - | 1.38 |
| Max. Door Height (in) | - | 94.5 |
| Max. Door Width (in) | - | 17.75 |
| Max. Door Thickness (in) | - | 0.79 |
| Min. Door Thickness (in) | - | 0.59 |
| Max. Overlay (in) | - | 0.75 |
| Min. Overlay (in) | - | 0.59 |
| Closing Type | - | Soft Close |
| Adjustable | - | Y |
| Max. Opening Angle (degree) | - | 101 |
| All-Stainless Steel | - | Y |
| Are Fasteners Included | - | Y |
| Are Fasteners Required | - | Y |
| Fasteners Type | - | 3.5 x 16 Countersunk Flathead |
Applications
- Cabinets Doors
