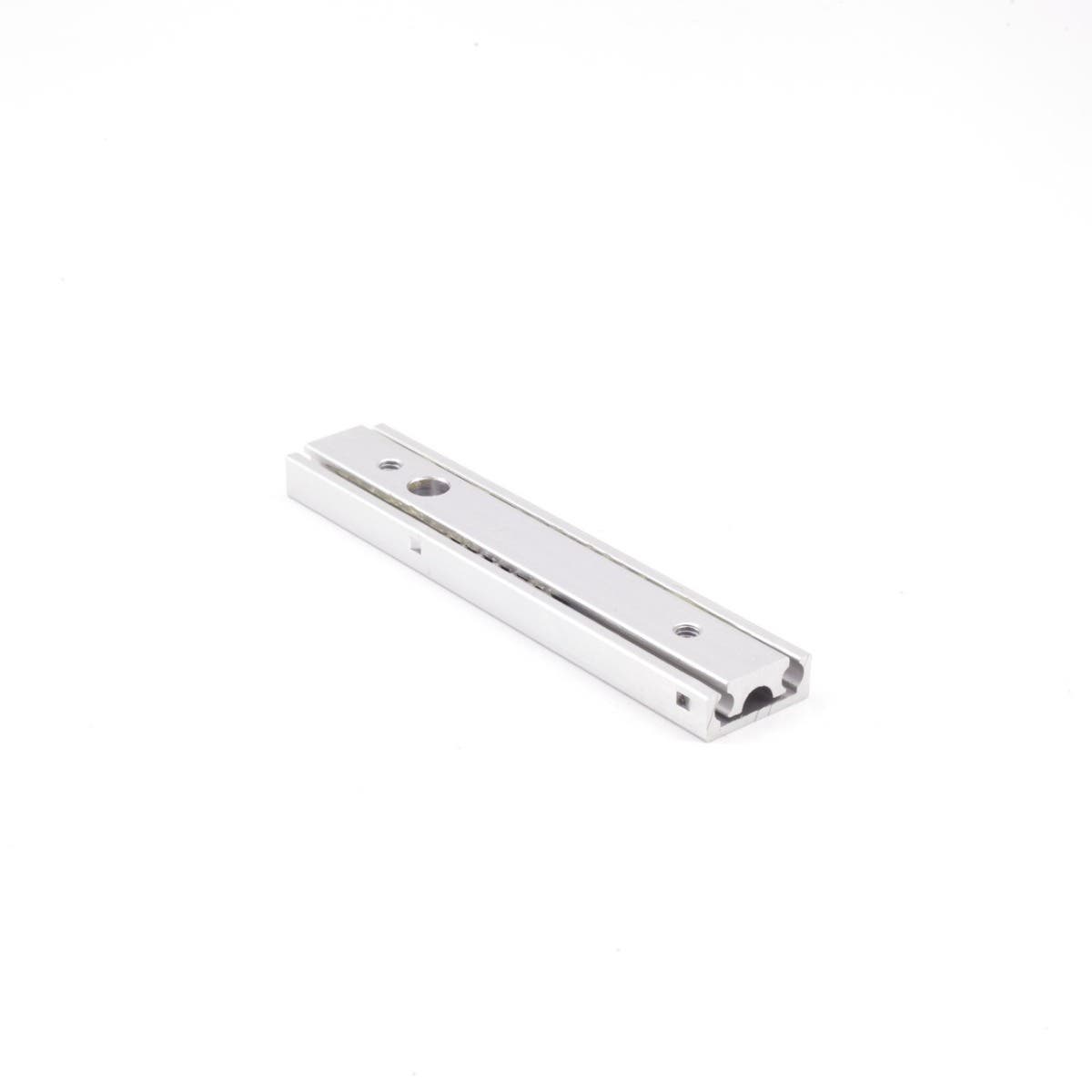

Sugatsune AR2 Aluminum Low Profile Slide, Finish-Anodized

Sugatsune
$15.80
Model:
AR2
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
printer Print
Email to a Friend
Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Details: Sugatsune AR2 Aluminum Low Profile Slide, Finish-Anodized

The Sugatsune AR2¾ Extension Slide is perfect for high end residential, commercial, and industrial applications. Full extension and ¾ extension slides are also available for purchase.

Aluminum Drawer Slide, Load Rating: 33 lbs, 3/4 extension alumnium slide with steel ball bearings, Positive stop, Non-handed, Recommended Hardware: M3.5 Flat Head Screws.

Note: Screws not included

Features

  • 3/4 extension
  • Positive stop
  • Non-handed
  • Sold by each

Specifications

Material
Aluminum, Steel
Finish
Anodized, Plain
Weight of Item (g)
31
Length or Depth of Item when closed (in)
3.9375
Length or Depth of Item when open (in)
6.3125
Height of Item (in)
0.8125
Width of Item (in)
0.375
Load Capacity (lbs/pr)
34
Slide Length (in)
3.9375
Travel Length (in)
2.375
Profile Width (in)
0.3125
Profile Height (in)
0.8125
Mounting Type
Side Mount
Extension Type
3/4 Extension
Front Disconnect
N
Friction Brake Stop
N
Hold-in Detent
N
Positive Lock
N
Positive Stop
Y
Quick Disconnect
N
Soft Closing
N
Non-Handed
Y
All-Stainless Steel
N
Are Fasteners Included
N
Are Fasteners Required
Y
Fasteners Type
3mm or #5 screw
Is CA Prop 65 Compliant
N
Is NSF Compliant
N
Is RoHS Compliant
RoHS 3
Is Accessory
N

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

About Sugatsune

Sugatsune knows the importance of high quality products, and their passion is apparent in every element of their business. People say that seeing is believing, but to actually hold a Sugatsune product, to feel it in your hand as you perform its intended purpose, you'll know you made the right choice. Every detail of Sugatsune's cabinet hardware is fully realized, whether it's their concealed hinges, lid stays, sliding door pulls, stainless steel handles, drawer slides, magnetic catches or latches. So what are you waiting for? A miracle? Unfortunately Sugatsune can't guarantee divine intervention, but their quality and customer service come awfully close.

No. Part Material Finish
1 Outer Rail Aluminum Anodized
2 Inner Rail
3 Balls Steel -

Item No. Slide Length Travel Length A B C D Load Rating (kg/pair) Weight (g)
AR2-100 100 (3-15/16") 60 (2-23/64") - 70 - 70 15.3 (34 lbs) 31
AR2-200 200 (7-7/8") 120 (4-23/32") 65 170 85 170 12.2 (27 lbs) 63
AR2-300 300 (11-13/16") 180 (7-5/64") 135 270 135 270 10.2 (22 lbs) 76
AR2-400 400 (15-3/4") 240 (9-29/64") 185 370 185 370 9.2 (20 lbs) 129
AR2-500 500 (19-11/16") 300 (11-13/16") 235 470 235 470 8.2 (18 lbs) 161
