Sugatsune ARN-3 Aileron Lift-Assist Lid Stay With Soft Close (Upward Opening)

$62.70

Model:: ARN-3

Item is normally in stock and ships out within 3-5 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Torque

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Sugatsune ARN-3 Aileron Lift-Assist Lid Stay With Soft Close (Upward Opening)

Sugatsune America offers quality of precision. We engineer products that are second-to-none. We take pride in the longevity of our products, confident they'll see you through for years to come.

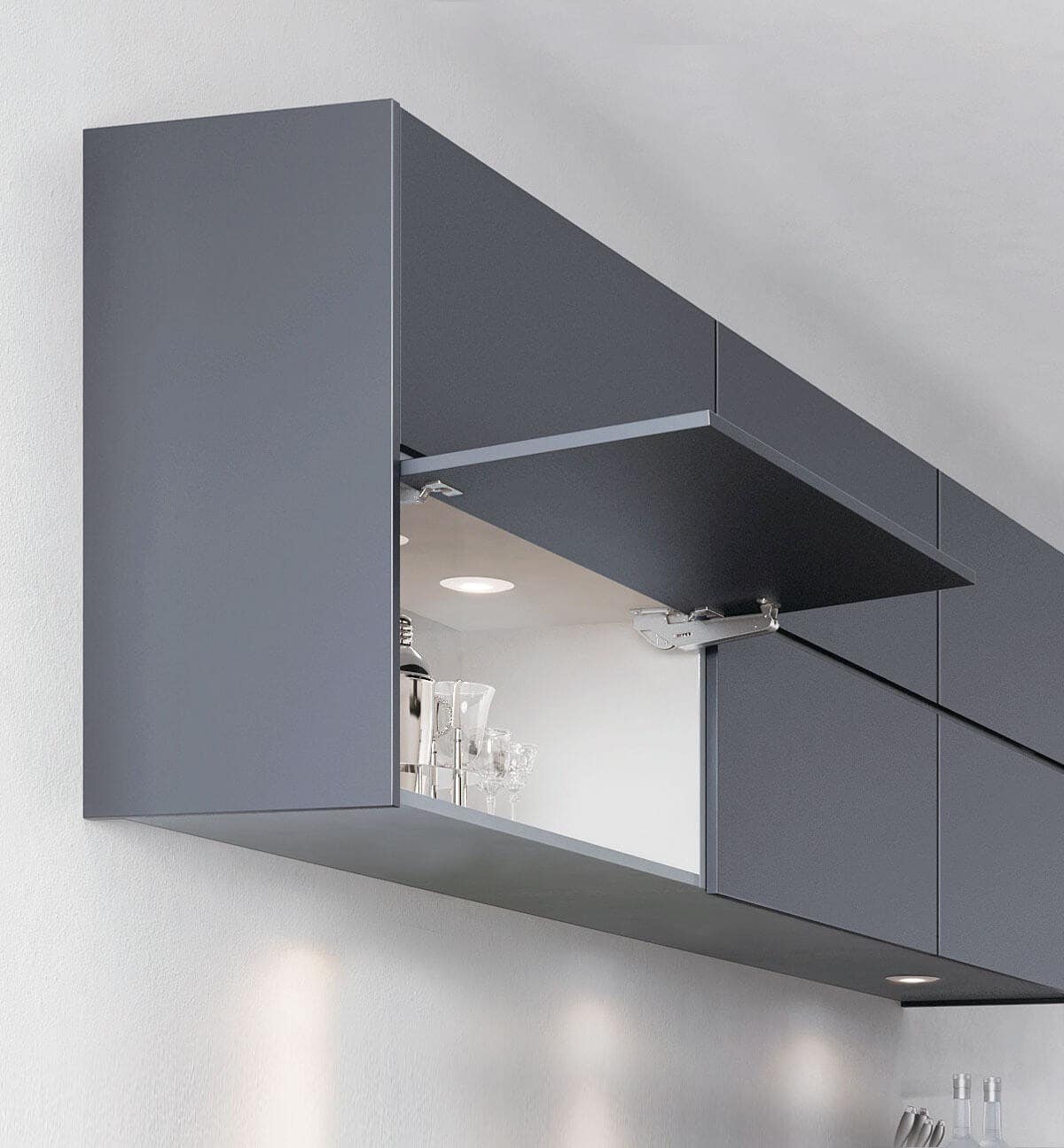

Delivering luxurious movement, the Aileron System cabinet lid stay allows you to customize and adjust the closing speed and free-stop functions to your individual preference. With this flawless smooth door movement, you'll enjoy perfect functionality.

Features

Requires minimal 3" × 7" space for installation
Integrated design with Sugatsune's Olympia hinge create lift assist, free-stop, and soft closing functions
Lift assist and soft-close independently adjustable
Smooth door movement. This product is specifically designed to use with the OLYMPIA concealed hinge (360-D26-19)
The lift-assist function allows for graceful and light opening of doors
The free-stop function enables doors to hold in position (30 degrees - Max)
The soft-close function makes doors close gently (0 degrees - 30 degrees)
Integrated design combines a concealed hinge and lid stay
Closing speed of doors is adjustable

Specifications

Board Thickness: 9/16" (15mm) ~ Max: 7/3" (22mm)

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Videos

Aileron Lid Stay System

Aileron Lift Assist System

The Sugatsune Showroom: AILERON Lift-Assist Lid Stay
