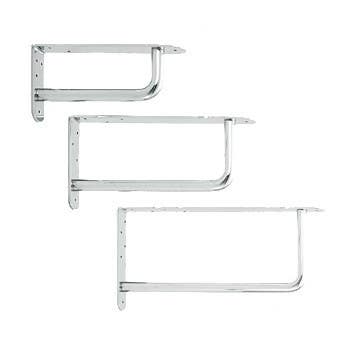

Sugatsune BY S.S. Bracket, Finish-Mirror
$328.60
- Model:
-
BY
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote - Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Details: Sugatsune BY S.S. Bracket, Finish-Mirror
Stainless Steel Bracket, Supplied with stainless steel screws.
Specifications
| Material | - | 304 Stainless Steel |
| Finish | - | Mirror |
| Weight of Item (g) | - | 1800 |
| Length or Depth of Item when closed (in) | - | 19.6875 |
| Height of Item (in) | - | 9.875 |
| Width of Item (in) | - | 1.625 |
| Load Capacity (lbs) | - | 110 |
| Holes | - | 10 |
| All-Stainless Steel | - | N |
| Are Fasteners Included | - | Y |
| Are Fasteners Required | - | Y |
| Fasteners Size | - | 5 X 25, 5 X 16 |
| Fasteners Type | - | Self tapping screw |
| Is CA Prop 65 Compliant | - | N |
| Is NSF Compliant | - | N |
| Is RoHS Compliant | - | RoHS 2 |
| Is Accessory | - | N |
Applications
About Sugatsune
Sugatsune knows the importance of high quality products, and their passion is apparent in every element of their business. People say that seeing is believing, but to actually hold a Sugatsune product, to feel it in your hand as you perform its intended purpose, you'll know you made the right choice. Every detail of Sugatsune's cabinet hardware is fully realized, whether it's their concealed hinges, lid stays, sliding door pulls, stainless steel handles, drawer slides, magnetic catches or latches. So what are you waiting for? A miracle? Unfortunately Sugatsune can't guarantee divine intervention, but their quality and customer service come awfully close.
| Item No. | Load Capacity (kg) | Weight (g) | Box (pcs) | Carton (pcs) |
|---|---|---|---|---|
| BY-300 | 50 (110 lbs) | 1100 | 2 | 6 |
| BY-400 | 50 (110 lbs) | 1400 | 2 | 6 |
| BY-500 | 50 (110 lbs) | 1800 | 2 | 6 |
| Item No. | L1 | L2 | H1 | H2 | C1 | C2 | C3 | C4 | C5 | C6 | Holes | Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BY-300 | 300 (11-13/16") | 240 | 150 (5-29/32") | 90 | 280 | 100 | 30 | 130 | - | 30 | 8 | 5x25,5x16 |
| BY-400 | 400 (15-3/4") | 340 | 200 (7-7/8") | 140 | 380 | 120 | 30 | 180 | 90 | 30 | 10 | 5x25,5x16 |
| BY-500 | 500 (19-11/16") | 440 | 250 (9-27/32") | 190 | 480 | 160 | 30 | 230 | 90 | 30 | 10 | 5x25,5x16 |
