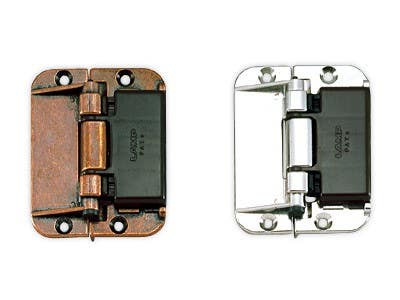

Sugatsune CH-75 Cabinet Center Hinge For Folding Door

$13.00

Model:: CH-75

Item is normally in stock and ships out within 3-5 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Sugatsune CH-75 Cabinet Center Hinge For Folding Door

Features

180 degree opening with detent function (up to 90 degree).
Hinge snaps in at open and closed positions.
Ideal for folding doors in furniture, folding screens, light duty partitions, and similar applications.
Removable hinge pin allows for easy installation.
Designed for use with solid wood and MDF. Can also install to aluminum frame with AS-CH-75 parts set (sold separately).

Specifications

Material: ZINC ALLOY, POLYACETAL, POLYAMIDE
Weight of Item (g): 100
Length or Depth of Item when closed (in): 0.728
Length or Depth of Item when open (in): 3
Height of Item (in): 2.953
Width of Item (in): 2.362
Knuckles: 3
Holes: 4
Max. Opening Angle (degree): 180
Are Fasteners Required: Y
Fasteners Type: 4 mm or 8 self tapping screw

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Catalog
