Sugatsune HBFN New Horizontal Bi-Fold Door Mechanism
$164.00
- Model:
-
HBFN
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote - Unique new bi-fold door mechanism will assist in opening and closing doors in a smooth motion
- No tracks or guides required
- Handle position can be at the bottom of the door
- Arm length adjustable for various door sizes
- Patented LAPCON technology provides smooth and quiet motion
- Recommended Door Size and Weight): Width, 450~900 mm (17-23/32"~35-7/16") Height, 320~370 mm (12-19/32"~14-9/16")/each door Weight, 2.5~5.5 kg (5.5~12.1 lbs)/each door
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use

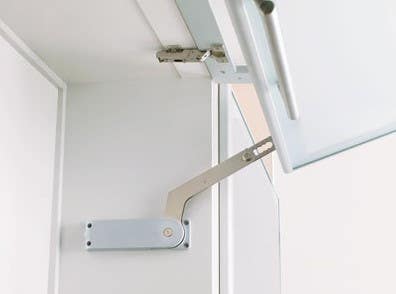

Details: Sugatsune HBFN New Horizontal Bi-Fold Door Mechanism
Nothing's worse than when your cabinet or trunk lid slams shut, damaging the hardware or crushing your fingers in the process. The Sugatsune HBFN Horizontal Bi-Folding Door Mechanism uses patented Lapcon technology to allow for safe and smooth operation. Heavy duty lid stays, spring loaded stays and multi-angle lid stays are also available.
Lapcon Horizontal Bi-folding Door Mechanism, Supplied with 3.5x15 screws, HBFN unique new bi-fold mechanism will assist the door open and close in a smooth motion, More compact design requires no tracks or guides, Handle can be put at a lower position, Patented LAPCON technology lets the movement glide smoothly and quietly.
Must be ordered with the HBFN-SZ mounting plate for installation.
Note: Top hinges & handle not included.
Features
Specifications
| Material | - | Steel, Plastic |
| Finish | - | Light Gray |
| Weight of Item (g) | - | 1500 |
| Length or Depth of Item when closed (in) | - | 8.3125 |
| Height of Item (in) | - | 13.9375 |
| Width of Item (in) | - | 0.875 |
| Soft Closing | - | Y |
| Self-Closing | - | N |
| Open/Lift Assist | - | Y |
| Hold Open Catch | - | N |
| Are Fasteners Included | - | Y |
| Are Fasteners Required | - | Y |
| Fasteners Size | - | 3.5 X 15 |
| Fasteners Type | - | Self tapping screw |
| Is CA Prop 65 Compliant | - | N |
| Is NSF Compliant | - | N |
| Is RoHS Compliant | - | Not Compliant |
| Is Accessory | - | N |
| Item Number | Door Height door (mm) | Door Weight (kg/door) |
| HBFN-2S | 260~320 (10-15/16"~12-19/32") | 2.5~3.5 (5.5~7.7 lbs) |
| HBFN-3S | 3.6~4.5 (7.9~9.9 lbs) | |
| HBFN-4S | 4.6~5.5 (9.9~12.1 lbs) | |
| HBFN-2M | 320~370 (12-19/32"~14-9/16") | 2.5~3.5 (5.5~7.7lbs) |
| HBFN-3M | 3.6~4.5 (7.9~9.9 lbs) | |
| HBFN-4M | 4.6~5.5 (9.9~12.1 lbs) |
