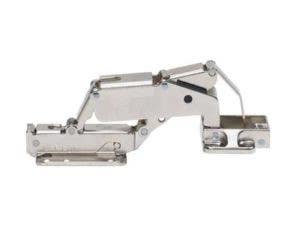

Sugatsune HT-160V2 Cabinet Concealed Hinge
$19.11
- Model:
-
HT-160V2
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Sugatsune HT-160V2 Cabinet Concealed Hinge
Features
- For use with sheet metal applications
- Overlay adjustment from 1-3 mm
- Ideal for when 2 doors are close together
Specifications
| Material | - | Zinc Alloy (Plate), Steel (Body), Polyacetal (Spacer) |
| Finish | - | Nickel (Plate, Body), Black (Spacer) |
| Weight of Item (g) | - | 260 |
| Length or Depth of Item when closed (in) | - | 3.375 |
| Height of Item (in) | - | 2.125 |
| Width of Item (in) | - | 2.875 |
| Max. Door Height (in) | - | 94.5 |
| Adjustable | - | N |
| Max. Opening Angle (?) | - | 95 |
| Max. Opening Angle (degree) | - | 95 |
| All-Stainless Steel | - | N |
| Are Fasteners Included | - | N |
| Are Fasteners Required | - | Y |
| Fasteners Type | - | 4 mm fastener |
| Is CA Prop 65 Compliant | - | N |
| Is NSF Compliant | - | N |
| Is REACH Compliant | - | o |
| Is RoHS Compliant | - | RoHS 3 |
| Is Accessory | - | N |
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
