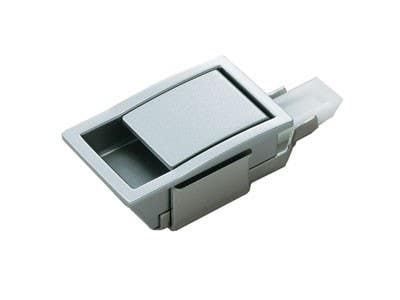

Sugatsune LC-65A Flush Slam Latch, Door Thickness- 2.0 to 3.2 mm, Anodized
$44.00
- Model:
-
LC-65A
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote - Door will be latched when closed
- Pull paddle handle to open
- Non-Handed- Can be installed on left or right side
- Designed for panel thickness 2.0 - 3.2 mm
- Easy installation. Insert the latch body through cutout section and simply screw-on the back plate
- Material
- Aluminum
- Weight of Item (g)
- 108
- Length or Depth of Item when closed (in)
- 1.1875
- Length or Depth of Item when open (in)
- 1.1875
- Height of Item (in)
- 1.75
- Width of Item (in)
- 3.625
- Max. Door Thickness (in)
- 0.125
- Min. Door Thickness (in)
- 0.0625
- Are Fasteners Included
- Y
- Are Fasteners Required
- Y
- Fasteners Size
- M4 X 8
- Fasteners Type
- Screw
- Is RoHS Compliant
- RoHS 2
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Details: Sugatsune LC-65A Flush Slam Latch, Door Thickness- 2.0 to 3.2 mm, Anodized
Features
Specifications
Applications
Downloads
