Sugatsune LIN-X1000 Lateral Opening Door System
$2,860.00
- Model:
-
LIN-X1000
-
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Sugatsune LIN-X1000 Lateral Opening Door System

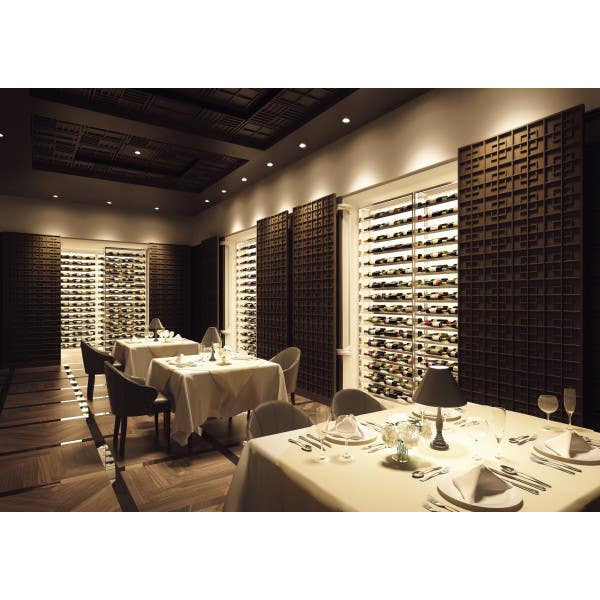

Lateral swing mechanism allows doors to open sideways in a small radius and then close flush to the wall. Ideal for compact spaces and applications in tight spaces.
Features
- Unique lateral swinging movement.
- Swings out in small radius. Closes flush.
- Full access to cabinet interior: door will not get in the way when fully opened.
- Easier installation due to simplification of components.
- Free-stop: holds position at desired location within its open radius.
- Soft-closing: built-in damper slows down door near closing radius, preventing slamming.
- 4way post-installation adjustment: vertical (±7 mm), horizontal (±7 mm), depth (±5 mm) and parallel (±3°).
- Good Design Show winner 2016
- Reddot Product Design winner 2017
- Passed 100,000 open/close cycles in a private test.
Specifications
| Material | - | Steel, Aluminum |
| Finish | - | Black |
| Weight of Item (g) | - | 16000 |
| Length or Depth of Item when closed (in) | - | 9.055 |
| Height of Item (in) | - | 89.37 |
| Width of Item (in) | - | 25.709 |
| Max. Door Height (in) | - | 117.3125 |
| Max. Door Width (in) | - | 43.3125 |
| Min. Door Width (in) | - | 29.5 |
| Max. Door Thickness (in) | - | 1.5625 |
| Min. Door Thickness (in) | - | 0.9375 |
| Max. Door Weight (lbs) | - | 198 |
| Soft Closing | - | Y |
| Self-Closing | - | N |
| Are Fasteners Included | - | Y |
| Are Fasteners Required | - | Y |
| Fasteners Size | - | 6 x 25mm |
| Fasteners Type | - | Truss head tapping screw |
| Is CA Prop 65 Compliant | - | Y |
| Is NSF Compliant | - | N |
| Is RoHS Compliant | - | RoHS 2 |
| Is Accessory | - | N |
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
