Sugatsune LP-F8 Fastmount Low Profile Self Tapping Female Clip
$1.40
- Model:
-
LP-F8Item is normally in stock and ships out within 3-5 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote

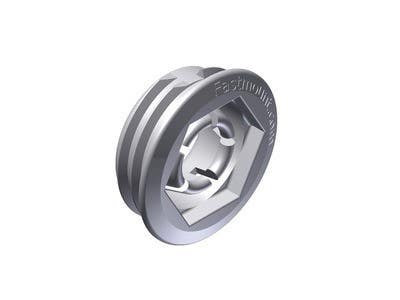

Details: Sugatsune LP-F8 Fastmount Low Profile Self Tapping Female Clip
The LP-F8 self-tapping female is designed for fitting into substrates with min. 9mm thickness. Compatible with all female clips in the Low Profile Range (pull out load determined by male clip used).
Features
- Hidden fixing
- Self taps into substrates from 9 mm thick
- Perfect panel alignment and secure mounting every time
- Remove and refit panels in any sequence multiple times
- 5 kg or 15 kg pull out load per clip
- Allows for flexing and expansion of panel and support frame
- Male self tapping low profile clip for plywood and MDF type boards
Specifications
| Material | - | Plastic (POM)-White Acetal copolymer |
| Finish | - | White |
| Weight of Item (g) | - | 4.4 |
| Length or Depth of Item when closed (in) | - | 0.5 |
| Height of Item (in) | - | 0.5 |
| Width of Item (in) | - | 1.1875 |
| Min. Panel Thickness (in) | - | 0.375 |
| Installation Type | - | Self tapping |
| For Drywall | - | N |
| Wall Panel Model | - | Y |
| Ceiling Panel Model | - | N |
| Are Fasteners Included | - | N |
| Are Fasteners Required | - | N |
| Is CA Prop 65 Compliant | - | N |
| Is NSF Compliant | - | N |
| Is RoHS Compliant | - | RoHS 2 |
| Is Accessory | - | N |
| Use With | - | LP-M8A, LP-SM8AS, LP-SM8H, LP-SMx |
Applications
- Suitable for covered, painted and prefinished panels
- Suitable for carbon/foam core substrates
- Refits and upgrades of existing installations
- Bedheads, artwork
- Composites and thin-walled panels
