Sugatsune PC-F1A Fastmount Panel Clip Self-Tapping Female
$1.60
- Model:
-
PC-F1AItem is normally in stock and ships out within 3-5 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote

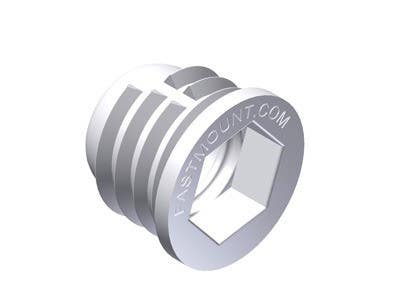

Details: Sugatsune PC-F1A Fastmount Panel Clip Self-Tapping Female
The versatile self-tapping PC-F1A female clip is designed to be installed into a variety of substrates, and be combined with any of the male clips in the Standard Range. Male clips determine pull-out loads, which range from 2 - 15 kg per clip set.
Features
- Self-aligning installation without adhesives
- Perfect panel alignment and secure mounting every time
- Remove and refit panels in any sequence multiple times
- Saves time and reduces cost
- Option of 2 kg, 5 kg, 10 kg, or 15 kg pull out load per clip set
- Allows for flexing and expansion of panel and support frame
Specifications
- ROHS Status
- ROHS 2
- Dimension
- 19.8 × 19.8 × 16.8 mm
- Material
- White Acetal copolymer
- Use With
- PC-M2H, PC-VM1, PC-SM2, PC-DC1, PC-M1B, PC-VMx, PC-SM2H, PC-SVMx, PC-SM1AC
Applications
- Covered, painted and prefinished panels
- Ceiling and wall panels
- Exterior deckhead panels (marine only)
- Refits and upgrades of existing installations
- Variety of substrates
- Composites and thin-walled panels
- Fits into PC-DC1 for installation into drywall and concrete
