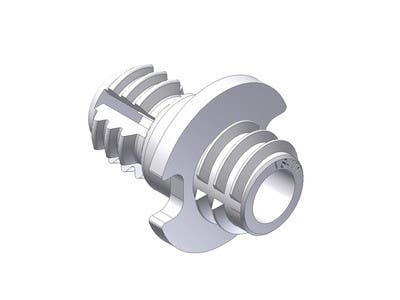

Sugatsune PC-VM1 Fastmount Panel Clip Vario Self Tapping Male
$1.90
- Model:
-
PC-VM1Item is normally in stock and ships out within 3-5 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Sugatsune PC-VM1 Fastmount Panel Clip Vario Self Tapping Male
The self-tapping clip PC-VM1 add to the Standard Range, offering 5kg pull out load. Designed for variable gap, high shear strength applications. Variable gap measurements are 6.5mm at first engagement, 4mm at second engagement. Compatible with all female clips in the Standard Range.
Features
- Variable clipping depth
- High shear load
- Remove and refit panels in any sequence multiple times
- Perfect panel alignment and secure mounting every time
- 5 kg pull out load per clip
- Durable design for frequent handling
Specifications
- ROHS Status
- ROHS 2
- Dimension
- 20 x 20 x 24.8 mm
- Material
- White Acetal copolymer/GF Nylon
- Use With
- PC-F1A, PC-RF1, PC-SF1, PC-AF1
Applications
- Seat backs and bases
- Seat backs with removable covers
- Heavy wall panels
- Use in conjunction with Standard Range clips
- Variety of substrates
