TownSteel m-Genius-S Grade 1 Mechanical Interconnected Lock, Sectional Trim

TownSteel
$597.78
$996.30
40% Off
Model:
m-Genius-S
Item normally ships out within 2-4 Weeks (excluding transit time).
Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
printer Print
Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

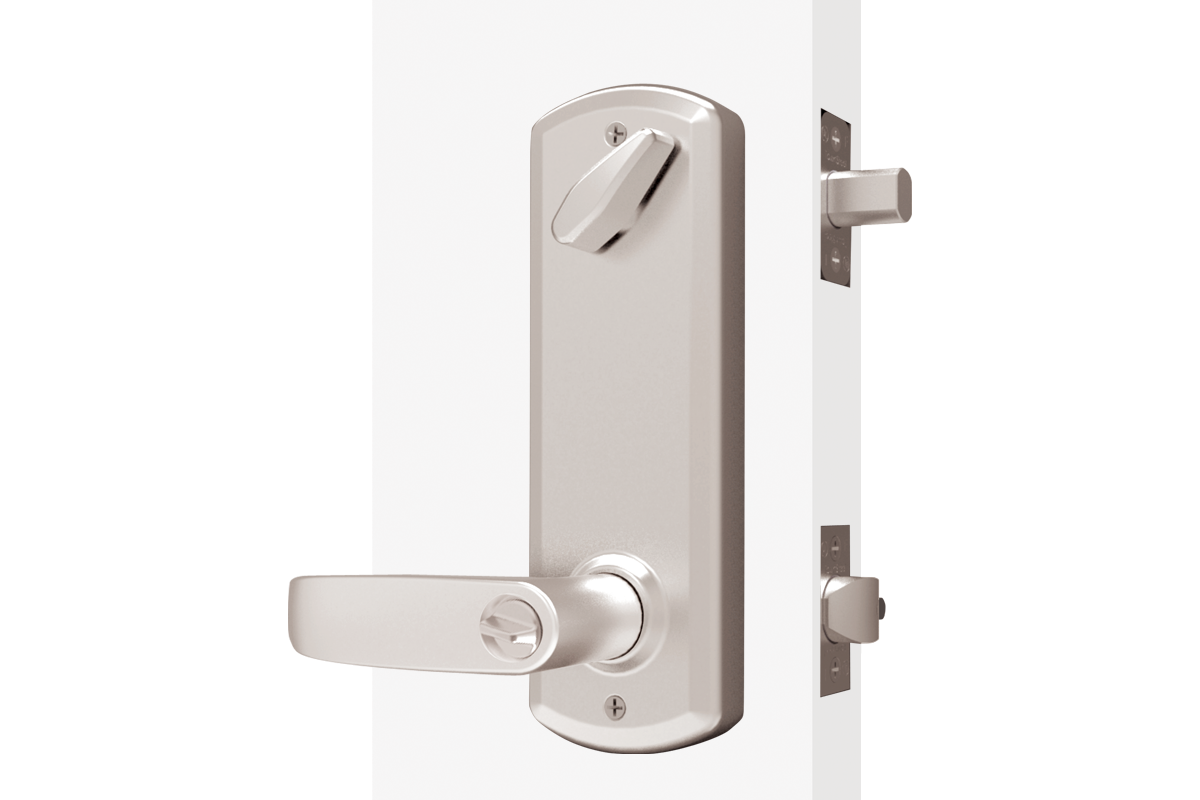

Details: TownSteel m-Genius-S Grade 1 Mechanical Interconnected Lock, Sectional Trim

The m-Genius with sectional (S) trim is an ideal lock for residential homes, offices, and commercial spaces. This mechanical lock is the only double lock providing the ability to lock and unlock an interconnected deadlatch and deadbolt with ease.

When the door is closed, the lever will not retract the deadlatch or deadbolt, providing instant lock security. For additional security with extended deadbolt, simply lift the lever from both sides or turn the thumbturn from inside of your property. To reentry or exit, simply use keys to unlock and/or push the lever downwards with single motion.

Features

  • Sectional trim
  • Interconnected deadbolt and deadlatch
  • Single motion egress
  • Lifting levers from both sides to extend deadbolt for extra security
  • Clutched lever design
  • Mechanical key provided
  • Available Storeroom Function (always locked) or Entry Function (with Toggle passage)
  • Americans with Disabilities Act
  • EU ROHS Directive 2002/95/EC
  • ANSI/BHMAA156.12 Grade 1
  • UL 10C 3 Hour Rated

Specifications

Door Thickness
1-3/4"
Backset
2-3/8" - 2-3/4" adjustable
Latchbolt
1/2" throw stainless steel deadlocking
Deadbolt
1" stainless steel deadbolt
Faceplates
1" × 2-1/4" or 1-1/8" × 2-1/4"
Latch Strike
Full lip with radius corners
Deadbolt Strike
1-1/8" × 2-3/4" radius corners with security underplate
Lockbody
4" or 5-1/2" deadbolt center to latchbolt center distance available

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
