HES 310-3-1 Folger Adam Electric Strike

$460.20

$767.00

40% Off

Model:: 0310-03-01

Item normally ships out within 1-2 Weeks (excluding transit time).

If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Electrical

Option

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

SKU

Ask A Question

Details: HES 310-3-1 Folger Adam Electric Strike

The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.

310-2

For a 1/2" or 5/8" throw latchbolt (without deadbolt) on single and pairs of doors.

1/2" keeper standard

310-2-3/4

For a 3/4" throw latchbolt (without deadbolt) on single and pairs of doors.

3/4" keeper standard

310-2-3/4OB

For a pair of doors, without a door coordinator, which are equipped with a lock having a 3/4" throw latchbolt (without deadbolt).

3/4" keeper standard

310-3-1

For a lockset with both a 3/4" throw latchbolt and a 1" throw deadbolt.

Deadbolt must be retracted manually. Position of block within cavity is adjustable for RH and LH applications

1" keeper standard

Specifications

UL 10C fire-rated, 3 hour single door (fail secure only)
UL 10C fire-rated, 3 hour double door (fail secure only)
CAN4-S104 (ULC-S104) fire door conformant
UL1034, burglary-resistant listed
UL 294 (6th Edition) listed
ANSI/BHMA A156.31, Grade 1
New York City accepted
NFPA-252 fire door conformant
ASTM-E152 fire door conformant
RoHS compliant

Electrical

.51 Amps @ 12VDC continuous duty
.25 Amps @ 24VDC continuous duty

Faceplates & Accessories

152 - Universal Mounting Tabs
310-2-3 - Strike latch guard
152 - Universal mounting tabs
2001M - Plug-in bridge rectifier

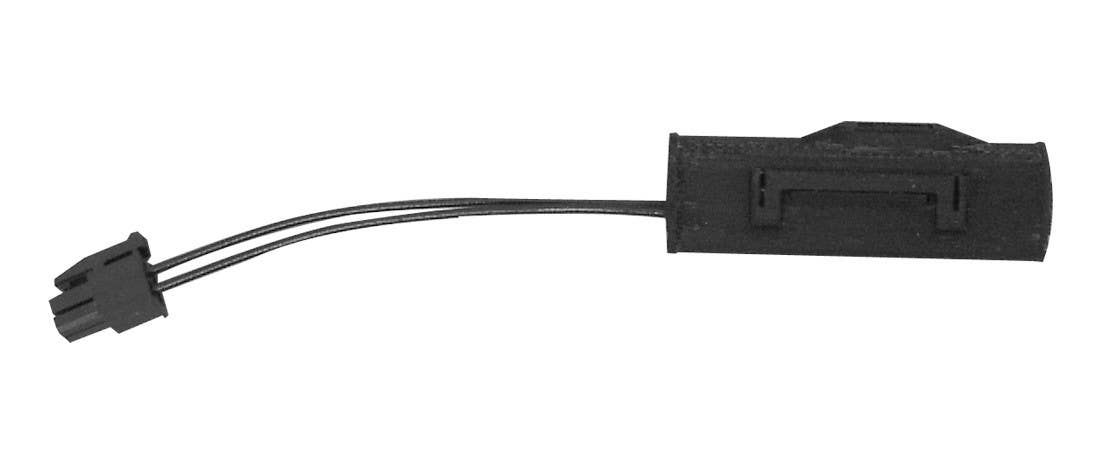

2001-1 - Wire-in bridge rectifier

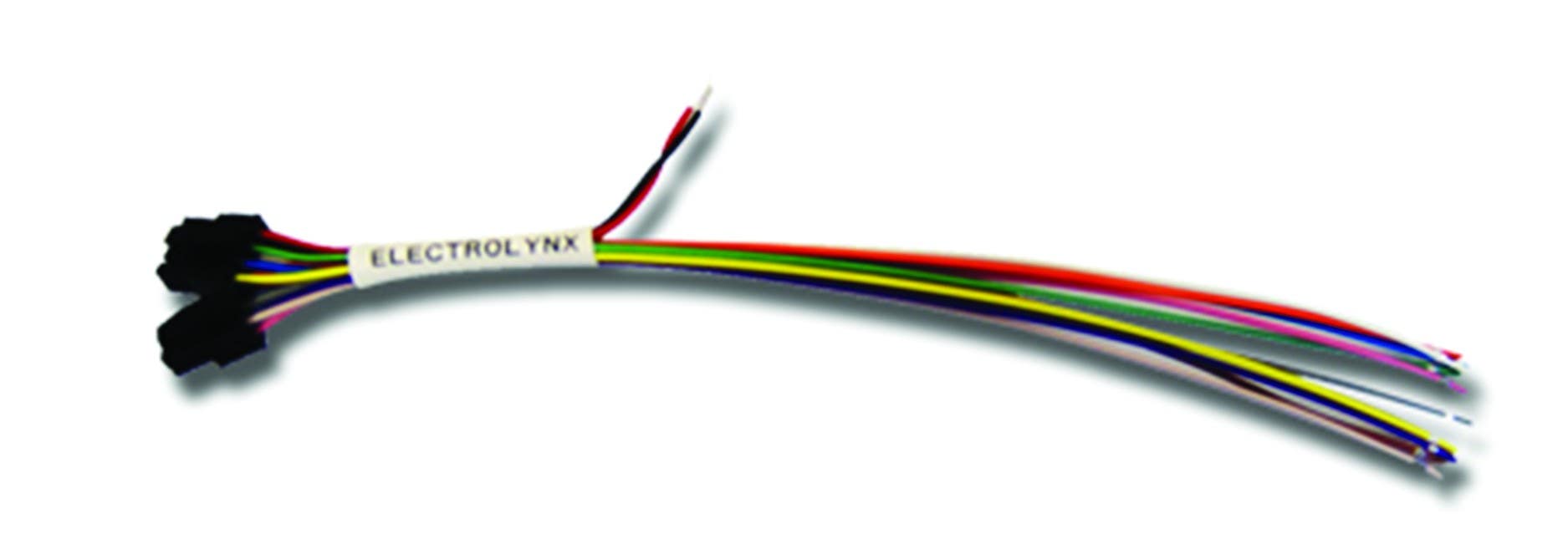

2004M - ElectroLynx

Complete, One Box, Solutions	Standard, Models
HES		Folger Adam	Adams Rite	Von Duprin	RCI	Trine	SDC
1006CS, 1006CLB	1006J	712-75, 732-75		6211, 6400	F2164	4100	55
1006CS, 1006CLB	1006K, 1006KD, 1006KM	742-75		6210, 6400	F2164	4100
1006CS, 1006CDB	1006A, 1006AD, 1006AM
1006CS, 1006CDB	1006N, 1006ND, 1006NM			6210	F2164
1006CS, 1006CDB	1006T, 1006TD
1006CS, 1006CDB	1006H, 1006HD, 1006HM				F2164
1006CS, 1006CDB	1006E
1006CS	1006Z
	1006R
	1006J2	310-2, 310-2 3/4		6215, 6224, 6226
1006CDB	1006H-2	310-3-1		6216
4500C		742-75	7240, 7270	6210	F2164	4100
5000C	5000-501		7140, 7340, 7410, 7411	4200, 5100	L6514		25-4U
5000C	5000-501A		7101, 7160, 7300, 7440	4200, 5100	L6504		25-4U
	5000-502		7110, 7310, 7410	5100	L6508
	5000-503		7130, 7430		L6507
	5000-504
5200C	5200-501			5100	S6514, 7114, 7314	2012	45-4S
5200C	5200-501A			5100	S6504, 7104, 7304		45-4R
	5200-502			5100	S6508, 7108, 7308	2002	45-7R
	5200-503				S6507, 7107, 7307	2678	145-6R
	5200-504
7000C	7000-791	712, 732	7400, 7401, 7440
7000C	7000-792		7410, 7411
	7000-783		74R1, 74R2
	7000-786
	7000-789
7501	7501
8000C	8000-801, 8000-801A
	8000-801E, 8000-802, 8000-803
	8500 Series
9400	9400				0563	4850
9500	9500			6300	F0162	4800F
9600	9600				0162	4800
		310-20B		6222, 6225
		310-4		6212
9700	9700	310-4S				4801
		310-4-1, 310-4-2, 310-4-3, 310-4-30
		310-6-1, 310-6-2, 310-6-3, 310-6-8, 310-6-30

NOTE:This chart is offered as a convenience only. Reference should be made to the idividual manufactuer's catalogs for complete data as to exact equivalents. There may be some variation in physical size, electrical characteristics and durability between strikes of different manufacturers. HES assumes no liability for differenes between items compared. When compatibility is a concern, contact Customer Support at 800-626-7590 for application assistance. NOTE: The 109 trim adapter may be required for a neater appearance in retro fit application where the strike lop dimensions exceed 3-3/8". NOTE:This chart details the HES and Folger Adam products that can replace competitors products, but not necessarily the reverse.
