Trine 323478LC-32D Axion 3000 Series Faceplace & Electric Strike Kit for Cylindrical Locks
$171.60
$286.00
40% Off
- Model:
-
323478LC-32D
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Trine 323478LC-32D Axion 3000 Series Faceplace & Electric Strike Kit for Cylindrical Locks
The enhanced Cylindrical lock solution as of 2013 now includes the 234X Faceplate and the 478-CCFP (competitor filler plate) in addition to the current tools already included Trine Solution. With the Patented horizontal adjustment feature -- Guaranteed not to move -- and the Smallest electric strike faceplate in the world, this 3000 Series strike is your universal ANSI solution.
Features
- BHMA GRADE 1
- 500,000 + life cycles
- Solid stainless steel latch and locking mechanism

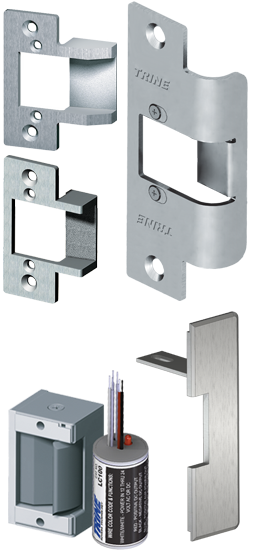

Kit Includes
- One (1) 234-26D Faceplate Faceplate
- One (1) 234X Faceplate
- One (1) 478-32D Faceplate
- One (1) 30LC Mechanism
- One (1) 478-CCFP (Competitor Filler Plate)
Compare Cutting
- Top: Standard Door Strike Plate
- Middle: Trines 323478LC Faceplates Require up to 60% less cutting and the 234 requires up to 80% less cutting.
- Bottom: Their strike requires extensive cutting of the frame.
Electrical Characteristics
| Voltage | Current/Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.743/0.298 | 13.0 | Intm./Cont. | Silent | Red |
| 12AC | 0.715/0.277 | 13.0 | Intm./Cont. | Silent | Red |
| 24DC | 0.397/0.170 | 13.0 | Intm./Cont. | Silent | Red |
| 24AC | 0.378/0.173 | 13.0 | Intm./Cont. | Silent | Red |
LC-100
This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection.
| Trine | Folger Adams | HES | Von Duprin | Adams Rite | RCI |
|---|---|---|---|---|---|
| 4200 | ---- | 5000 | 4200, 5100 | 7100, 7400 | 4 Series, 6 Series |
| 4100 | 712/712-75/732 732-75/642CYL | 4500 | 6400, 6211/6211WF | 7200 | 2164 |
| 4100DBDL | ---- | 1006CDB | 6400 | ---- | F2 Series |
| 4850 | ---- | 9400, 9600 | ---- | ---- | 0563 |
| 4800F | ---- | 9500, 9600 | 6300 | ---- | 0162F |
| 4801 | 712/712-75/732 732-75/642CYL | 9700 | ---- | ---- | ---- |
| EN400 | ---- | 1006J/7501 | 6211/6211WF | 7200 | 2114/F4114 |
| EN430 | 652SYL | 1006KD | 6210 | ---- | 2134/2334 |
| EN435 | 652RFL | 1006K | 6210 | ---- | 2124 |
| EN800 | 652RFL | 7000-783S | 6112 | 74R1 | 0161 |
| EN850 | 310-4 | 7000-789S | ---- | 74R2 | ---- |
| EN950 | 310-2 | 7505 | 6215/6226 | ---- | ---- |
| EN950W | 310-2W | ---- | ---- | ---- | ---- |
| EN960 | 310-2 3/4 | ---- | 6214/6224 | ---- | ---- |
| 323478LC | ---- | ---- | ---- | ---- | ---- |
| 234 | ---- | ---- | ---- | ---- | ---- |
| 258 | ---- | ---- | ---- | ---- | ---- |
| 458 | ---- | ---- | ---- | ---- | ---- |
| 478 | ---- | 5000/5200+501 | ---- | 7400+ | L6514+ |
| 478RD | ---- | 5000/5200+501"A" | ---- | 7401+ | L6504+ |
