Trine 4200 Electric Strike for Cylindrical Locksets & Deadlatches

Trine
$141.00
$235.00
40% Off
Model:
4200

This item has been discontinued

Item is normally in stock and ships out within 3-5 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
printer Print
Email to a Friend
Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

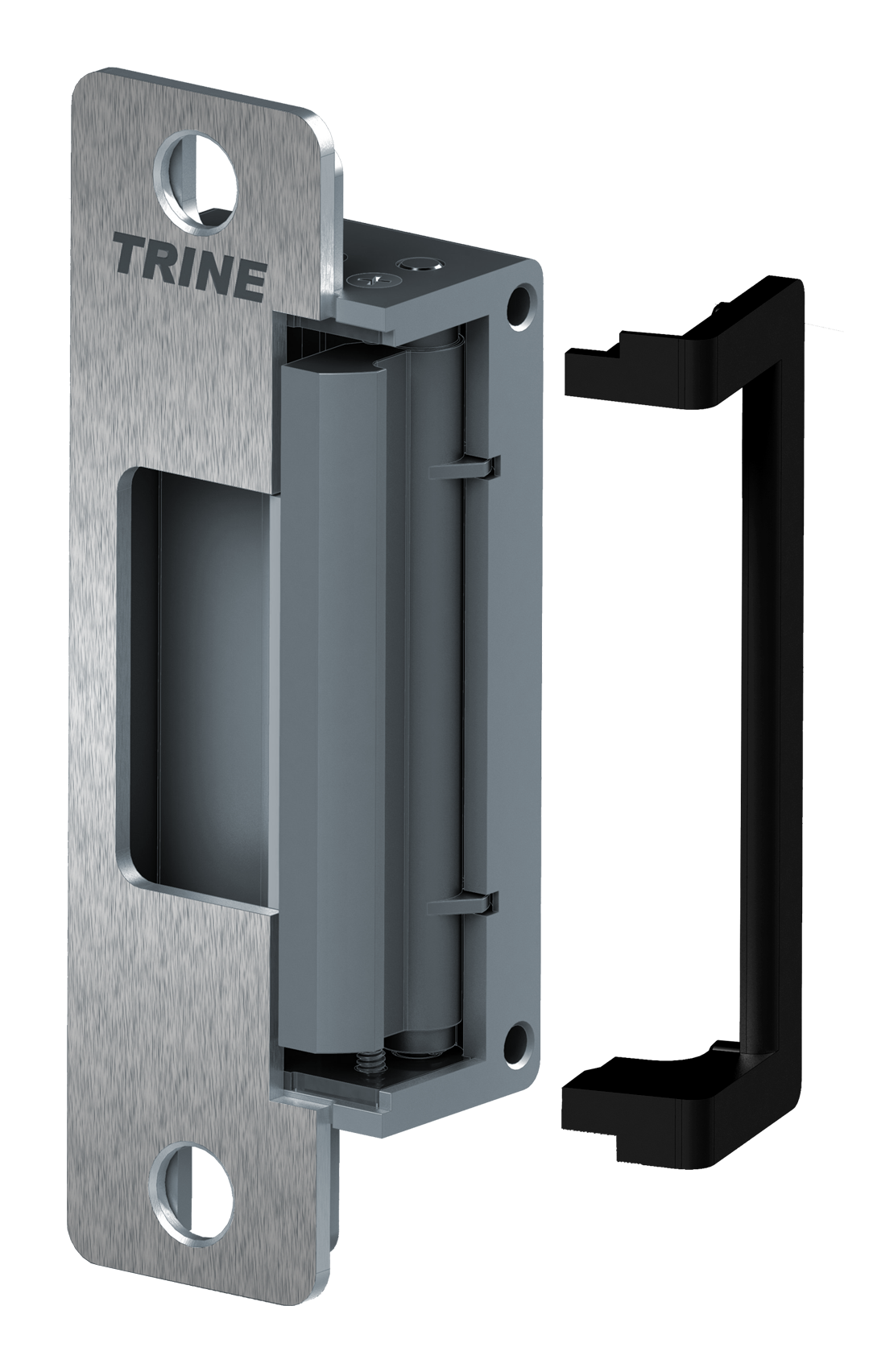

Details: Trine 4200 Electric Strike for Cylindrical Locksets & Deadlatches

The 4200 hase the tallest cavity in its class. This added height solves door sag and other alignment problems.problems. 1 - 1/16" Shallow backset solves frame depth problems, like with glass store fronts. The 4200 electric strike latch solves the auxillery latchpin problems many other electric strikes run into.
Grade 1 Electric Strike 4 included faceplate sizes cover most installations with cylindrical locks and deadlatches (and the 4900). Electric strike faceplates available in 6 finishes (the 5 powder coat colors and 32D)
VoltsCurrentOhms (Ω)DutySoundWire Color
12DC0.240 A50 ΩIntm./Cont.SilentBlue/Red
24DC0.114 A210 ΩIntm./Cont.SilentBrown/Red
12AC0.210 A50 ΩIntm.BuzzBlue/Red
16AC0.280 A50 ΩIntm.BuzzBlue/Red
24AC0.420 A50 ΩIntm.BuzzBlue/Red

Additional Resources

Lockset Strike Recommendations
Name Recommended Choices
Cylindrical LockCylindrical Lock4100, 4200, 400CMRP, 234X-375, 234, 478X-375, 478, 258, 258RD, 458
Mortise with a DeadboltMosrtise With Deadbolt4100DBDL
Mortise LockMortise Lock4100, 400CMRP
Mortise LockMortise Lock4100, 4200
Dead LatchDead Latch4100, 4200, 258, 258RD, 458
Vertical Rod LatchVertical Rod Latch275VR
Mortise Exit DeviceMortise Exit Device4100, 400CMRP
Rim Panic Exit DeviceRim Panic Exit Device4850, 4850PoE, 4850LCD, 4800F, 4801, 400CMRP

Electric Strikes & Compatible Door Frames
Electric Strike Compatible Door Frames Notes
41004100Hollow Metal Frame, Wood, AluminumUse the 4100RX for Raco© frames (covers the extra 1/4" gap in the frame)
4100DBDL4100DBDLHollow Metal Frame, Wood, AluminumBest strike for allowing deadbolt privacy with an override.
42004200Wood, AluminumONLY strike with Fascia Color Options -- Match the Fascia to your frame!
4850, 4850PoE, 4850LCD4850, 4850PoE, 4850LCDHollow Metal Frame, Wood, AluminumFor wood frames use 2" long mounting screws.
4800F, 48014800F, 4801Hollow Metal Frame, Wood, AluminumFor wood frames use 2" long mounting screws.
4800F, 4801400CMRPHollow Metal Frame, WoodFor wood frames use 2" long mounting screws.
275VR275VRHollow Metal Frame, Wood, Aluminum2-3/4" wide plate. Fits in tight spots in the header.
234X-375234X-375Formed Sheet Metal, WoodFor wood frames use 2" long mounting screws.
234234Hollow Metal Frame, WoodFor wood frames use 2" long mounting screws.
478X-375478X-375Formed Sheet Metal, Aluminum, WoodFor wood frames use 2" long mounting screws.
478478Hollow Metal Frame, Wood
258, 258RD258, 258RDAluminum
458458Aluminum
TrineFolger AdamsHESVon DuprinAdams RiteRCI
4200----50004200, 51007100, 74004 Series, 6 Series
4100712/712-75/732 732-75/642CYL45006400, 6211/6211WF72002164
4100DBDL----1006CDB6400----F2 Series
4850----9400, 9600--------0563
4800F----9500, 96006300----0162F
4801712/712-75/732 732-75/642CYL9700------------
EN400----1006J/75016211/6211WF72002114/F4114
EN430652SYL1006KD6210----2134/2334
EN435652RFL1006K6210----2124
EN800652RFL7000-783S611274R10161
EN850310-47000-789S----74R2----
EN950310-275056215/6226--------
EN950W310-2W----------------
EN960310-2 3/4----6214/6224--------
323478LC--------------------
234--------------------
258--------------------
458--------------------
478----5000/5200+501----7400+L6514+
478RD----5000/5200+501"A"----7401+L6504+
